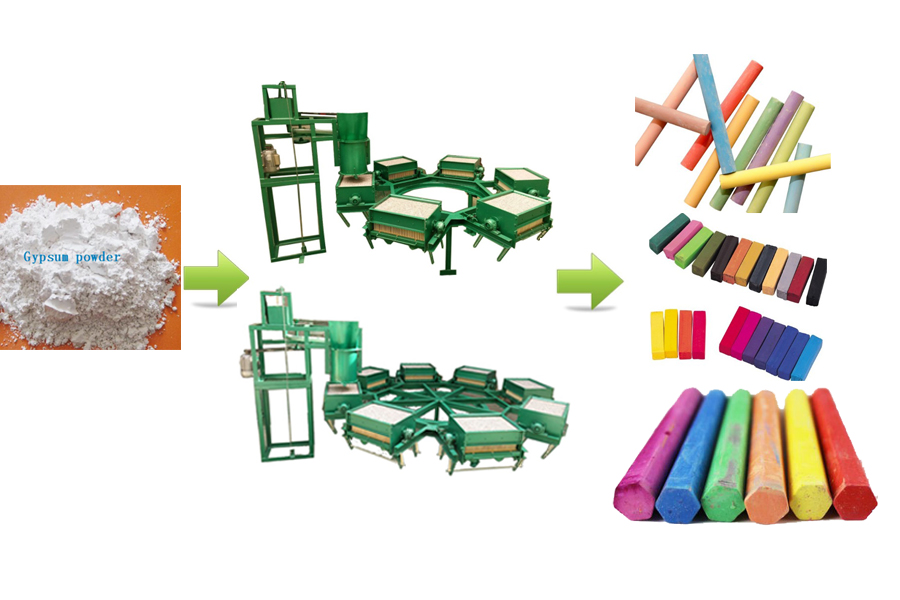

Raw material : Gypsum powder.
Final product : Chalk,colorful chalk,Polygon chalk.
Capacity : 2,0000pcs/8hours - 60,0000pcs/8hours.
Price: $500-$20000
Worker : 2 peoples,depended on capacity.
Loading Port : Qingdao port,China
Introduction

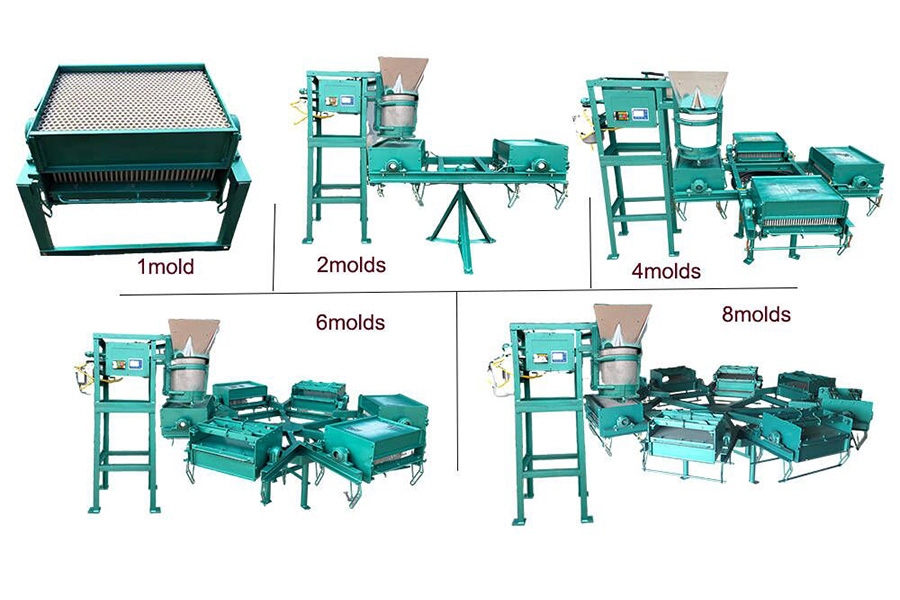

Our chalk machine can make chalks with high efficiency. It can make kinds of chalks : Such as chalk with fragrance, dustless chalk and color chalk. The chalk that is made by this kind of machine has slick surface,We can provide different models of chalk machine, 1 mold, 2 molds, 4 molds, 6 molds and 8 molds. We can also customize round chalk, quadrilateral chalk, hexagonal chalk and other polygonal chalks![chalk making machine](/wp-content/uploads/1-1.jpg)
Feature
- This machine is in assembly line method. Such as : Supplying water automatically,Electric beating . Grouting . Coming out. It has changed the manual operations into electric clutch with water cycling. Greatly decreased workers' labor intensity , improved many times of efficiency.
- The newly-produced chalk is smooth and nice-looking.
- One mold can contain 800 pieces of chalk
- Chalk types have the round ones ,the square ones, the hexagon ones, and so on.
- normal chalk size :big head diameter *small head diameter *length = 10 mm*8mm*75 mm , the mould can be customized.
Parameter
Model | Molds | Capacity | Packing size | Weight |
MCC-1 | 1 pc | 6,0000pcs/8h | 0.12(m3) | 50kg |
MCC-2 | 2pcs | 15,0000pcs/8h | 1.3(m3) | 350kg |
MCC-4 | 4pcs | 25,0000pcs/8h | 2(m3) | 450kg |
MCC-6 | 6pcs | 40,0000pcs/8h | 2.5(m3) | 700kg |
MCC-8 | 8pcs | 60,0000pcs/8h | 3(m3) | 850kg |
Operation process
- The Pulping machine is connected to the water meter to adjust the water volume by airbag.
- The mold must be coated with lubricant
- The beater bucket is filled with water,First step on the water pedal with the foot Put the water in the water meter into the beating bucket, add the quantitative gypsum powder to mix,and then continue to beat the second mold, the first mold has already solidified, flip the mold over and to push the chalk out, and put it in the sun dried
Chalk size
Shape | Big head(mm) | Small head(mm) | Length(mm) | Adjustable length(mm) |
Round | 9.6 | 9 | 80 | 2 |
Round | 10 | 7.7/8/9.5 | 76/75/80 | 2 |
Round | 11 | 9/9.5/10/10.5 | 80/75/75/100 | 2 |
Round | 12 | 10.5/11.5 | 80 | 2 |
Round | 18/22/25 | 16/21.5/22 | 105 | 2 |
Square | 11 | 10 | 60 | 2 |
Square | 12 | 11.5 | 80/100 | 2 |
Hexagon | 10 | 8 | 76 | 2 |
Hexagon | 11 | 9 | 75 | 2 |
